Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: BRD
  • Model Number: EPS-W-50
  • Panel Material: Metal
  • Type: EPS Sandwich Panels
  • Product name: eps Polystyrene wall panel
  • Steel Thickness: 0.3-0.7mm
  • Panel Thickness: 50-150mm
  • Material: EPS sandwiched panel
  • U Value (W / m2 K): 0.2-0.8
  • Length: 1-11.8m
  • Density: 5-30kg/m3
  • Thermal Conductivity: 0.03 (W/mK) at 10 degree
  • Advantage: Easy Install/Waterproof/Fireproof
  • Application: Warehouse,container house,villa

Packaging & Delivery

Packaging Details Nude packed in container, EPS Sandwich Panel insulated panel and be fixed by plastic packing belt. We can also follow your own requirement.
Delivery Time Within 7-20 working days after the payment
EPS Insulated Panel

WHAT WE OFFER - EPS Panels


Wall Panels : 50 mm, 75 mm, 100 mm, 150 mm
Roof Panels: 50 mm, 75 mm, 100 mm, 150 mm

We  are among the prominent suppliers of EPS Sandwich Panels. Our range of panels is made available in zinc, profile, pre-painted, galvalume coated steel and stainless steel sheets. EPS sandwich panels withstand extreme temperatures, and have a high load bearing capacity. We offer them in different dimensions but they can be customized according to the requirements of our clients. Our panels find their application in cold storage, workshops, shelters, roof top houses etc.We offer the range of thickness of as follows with various fascia options:

Our company is providing EPS panels that are insulated applications, which are food processing areas, roofing, wall cladding, partition, walk on ceilings, prefabricated shelters, accommodation shelters, health centers and many more. The panels are manufactured through a computerized continuous line and with pre-painted galvanized steel sheets (PPGS) and pre painted galvalume steel sheets. The density of expanded polystyrene foam (EPS) sandwiched between two fascias is 15 + 2 Kg/ M3.
Applications
external walls
partition walls
internal ceilings cover
objects insulation
Plate Materials
steel sheet coated with polyester paint,
stainless steel
Aluminum steel sheet
 Thermal Conductivity
0,030 [W/mK] at 10 degree
U Value
0.20- 0.80 (W / m2 K)
R Value
8-30 (Btu/ hr/ ft2/ of)
EPS Density (Kg / m2)
5-30 Kg/ m3 (Standard)
Compressive strength
1.95 at 10% deformation (Kg/m2)
Adhesive Strength
2.4 (Kg/m2)- foam to steel
Fire Class
Self Extinguishing
Benefits of Panel

Features:

1. Construction pre-engineered and fewer components, internationally accepted and meets the building code specifications
2. Higher energy savings due to low thermal conductivity
3. Flexibility in design and choosing various options on fascia of panels and colours
4. All weather proof construction and Maintenance free
5. These insulated panels gives long lasting value with controlled quality, accuracy & speed of construction and caters for better functionality and application.

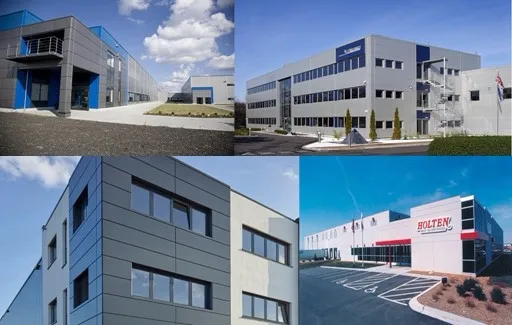

Panel Applications

EPS Sandwich Panel Applications

BRD-EPS panels are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure. The panels can be installed horizontally or vertically. The core is made of expanded polystyrene, which is produced by our own factory.

In particular the panels can be applied in:
Industrial buildings,
Store houses and logistic centres,
Cold rooms and freezers,
Commercial buildings and offices,
Food industry facilities,
Agricultural objects
Sport halls.
In addition to sandwich panels, we offer a wide range of accessories and tools needed for their installation. We also provide a comprehensive selection of professional services, and full technical support.

Logistics Park

United Kingdom Logistics Park project, used 50 mm PU insulated wall panel.

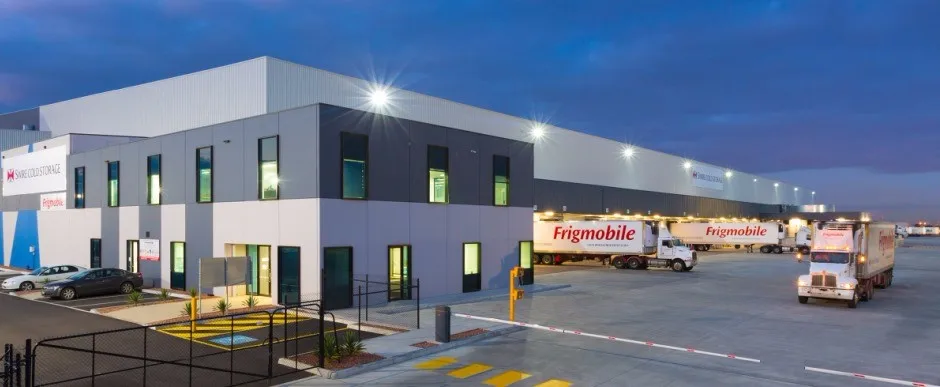

Industrial cold storage

New Zealand industrial cold storage, used 150 mm PU sandwich panel.

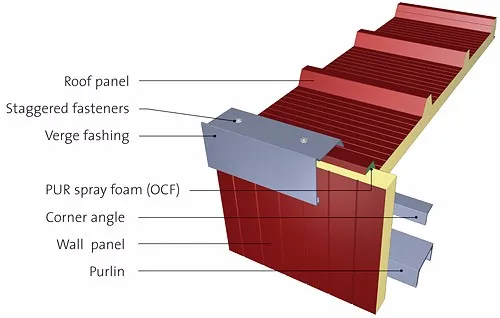

Application& Install

Flashings system,
Connecting and installation materials,
Aluminium and PVC joinery,
Gutter systems.


Thanks to many years of experience in production, sale and installation of sandwich panels we were able to create a full range of products that meet various needs and requirements of our customers. A professional team of our technical advisers provide technical information and are ready to assist if only necessary. We have experienced installation crews and modern transport base.

Please Click our Web to find the Installation Information: www.bundesteel.com

Our Company

BRD GROUP

BRD Group, was established in 1995, which is a listed company in Middle China. It is one of the earliest building materials  manufacturers.

There are more than 30 million square meters production area, more than 500 existing staffs. BRD Group is committed to make the buildings more green, more environmentally friendly and energy saving.

Large Scale Workshop

BRD GROUP is located in Changge Industrial Zoon, Xuchang city, Henan province.Also have two branch workshops  located in Zhengzhou and Qingdao city. The three cactories enjoy 100,000 square meters. 7 automatic production line to produce on time, the garage door machine can make 100 sets per day.

Advanced Machine

Automatic  production line, which is the longest in China, to ensure the quality and quantity.

Quality Control

More than 30 quality inspectors, in strict accordance with the ISO & CE quality control system.

Our team continues to improve the standards themselves, and we have to build a first-class quality, first-class benefits, first-class modern enterprise management as the goal, We are committed to the development of new energy-saving products, with independent intellectual property patents production technology, the introduction of German technology imported main material adhering to the "committed to being respected and have capacity for sustainable development of enterprises" for enterprise vision. Adhere to the "promotion of industrial innovation and circulation of the intensive use of social resources" for enterprise mission, continuous innovation, promote the building decoration industry to a green, low carbon, health, environmental protection, energy saving direction.

Why choose us

Our mission and strategy


Customer orientation
Satisfaction of our clients is our top priority and greatest value. We do our best to achieve it mainly thanks to our reliability, punctuality and high quality of our products and services. We treat our customers as our most valuable assets and the best long-term investment.

High Quality
We put maximum effort in order to create the best possible product or service, as we want them to fully meet our customers’ requirements. Our products are manufactured with the use of most modern technologies and production lines. We comply with ISO 9001:2000 standards. Materials used for production come from renowned European and domestic deliverers. Our priorities are durability, functionality and aesthetics.

Constant growth and diversification
More than 20 years of market experience enabled the company to achieve its strong position and brand. We do want to continue our present strategy of growth and diversification by introducing new products and ideas, as well as enter new markets in both industrial- and geographical sense.

Pre-Sales Service

* Design, produce, and full technical support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Engineers available to guid construction on site.
* Long life time quality assurance.
* Extend the service life of panels.

Sales to 71 Oversea Country

Our company has got ISO9001 and TUV certification, and our products has got CE certification. The distributor covers more than 21 cities in the world. BRD Group export sales net has covered over 35 countries and places, such as America, United Kingdom, Canada, Russia, Peru, Vietnam, Trinidad and Tobago, Australia, Sweden, and some other countries in Europe, Southeast Asia ,South Africa and other places. We sincerely hope to cooperate with you to create a double win situation.
